V56 LCD driver card case

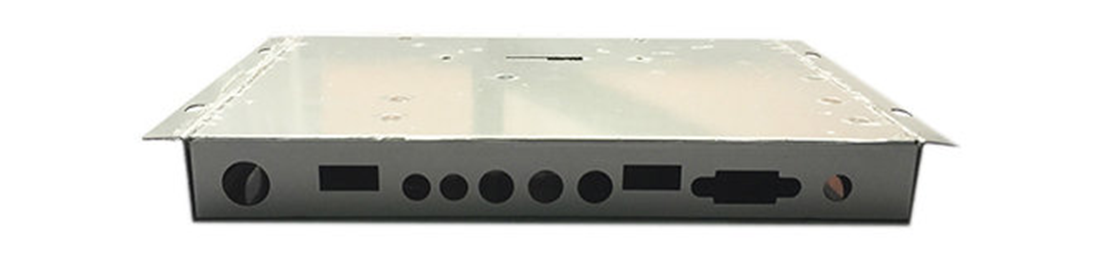

Whilst perusing Banggood for LVDS cables to use with the V56 board I came across a metal case for for the board. The case consists of a metal top and bottom with various mounting bushes as well as a small selection of screws.

The case has mounting points for the driver card, an inverter, the control keys (although this is for the 5 key version I think - not the 7 key I have used in other projects) and some speakers.

I've recorded a rather long video of me discussing this case below:

As I said in the video, I will to leave this permanently set up and use it to test any future screen projects I work on.

Components discussed in video

Notebook Screen LCD TV Shell For V29 V56 Controller Driver Board

1 Pair 4 Ohm 3W LCD Panel Speaker Amplifier Audio Frequency Output For V29 / V56 / V59

14Pcs Universal FPC/LVDS Display Cable Support For 10-65 Inch Screen LCD Controller Board

8-Sep-2017 Add comment
